CONTAINER W06

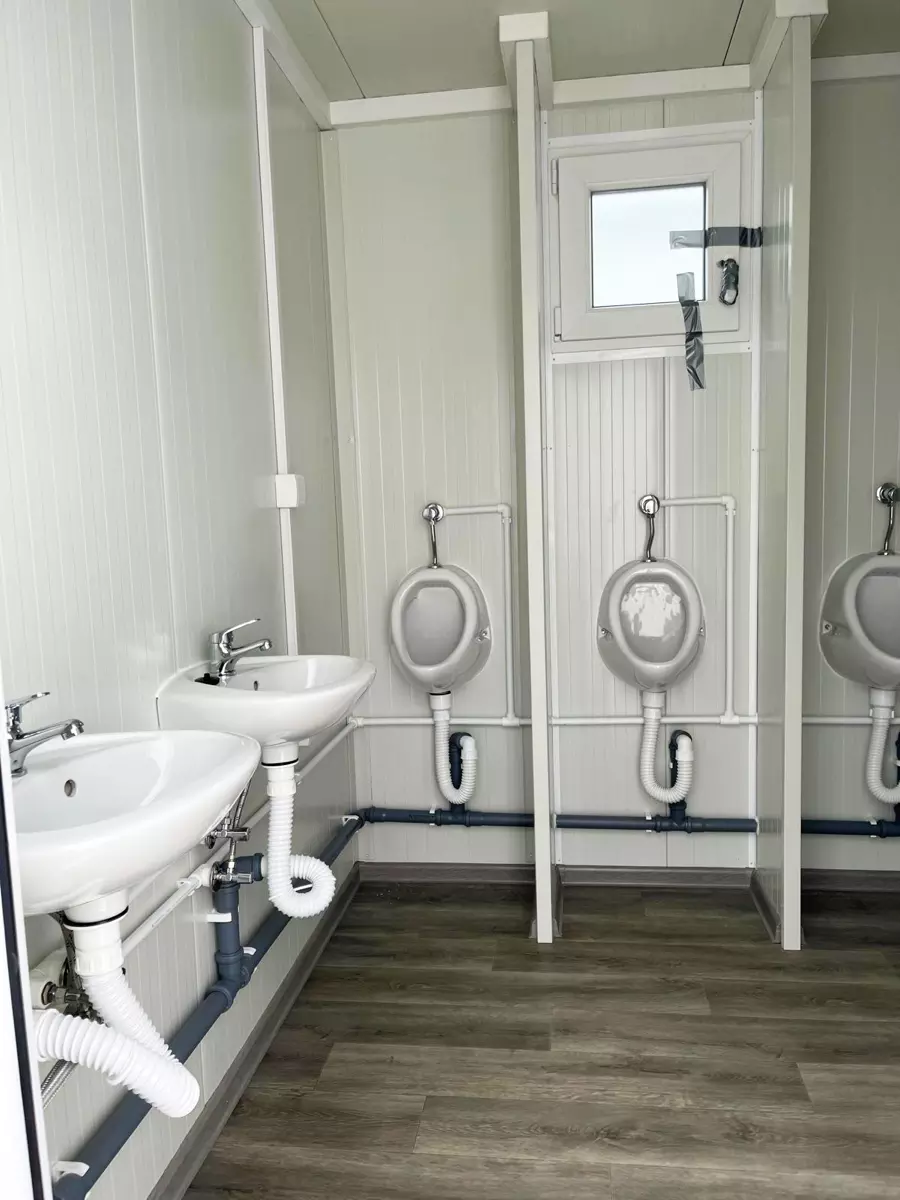

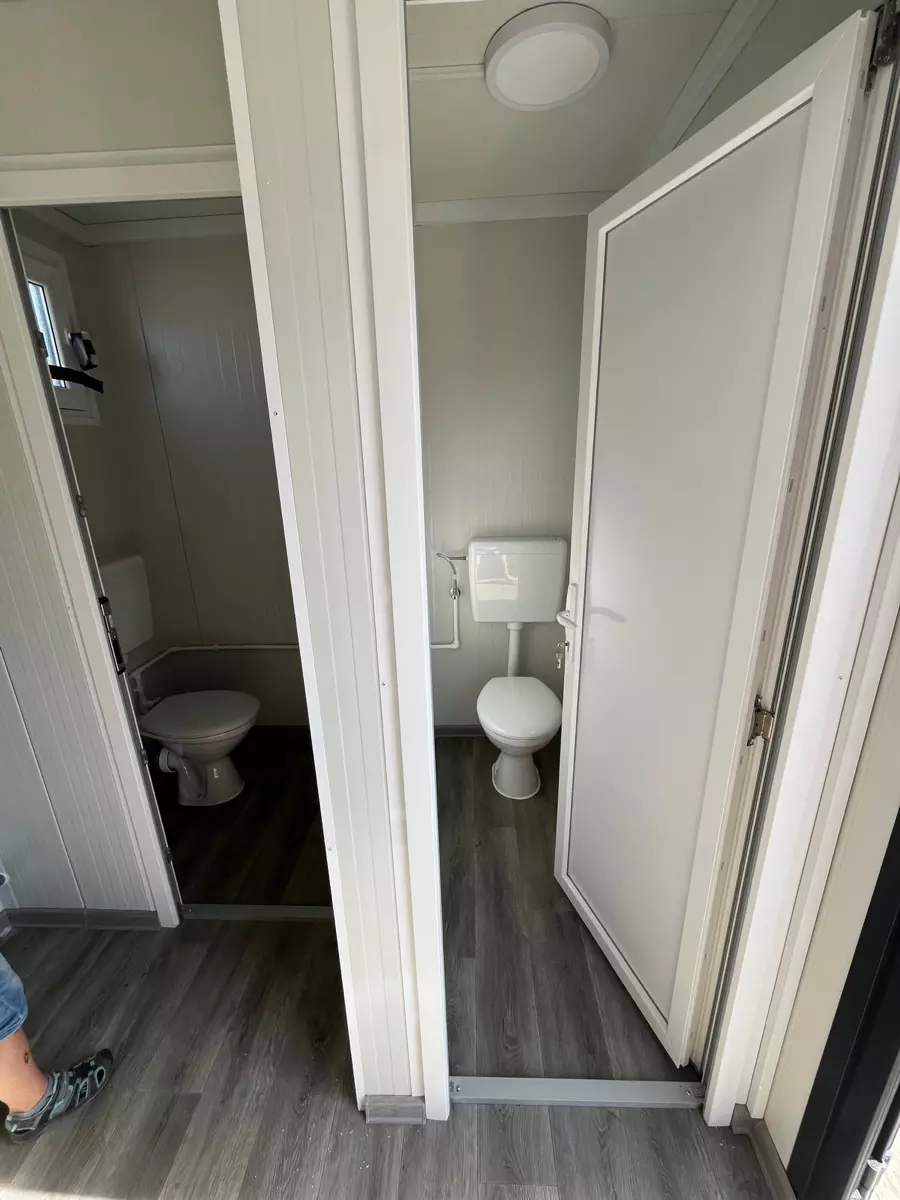

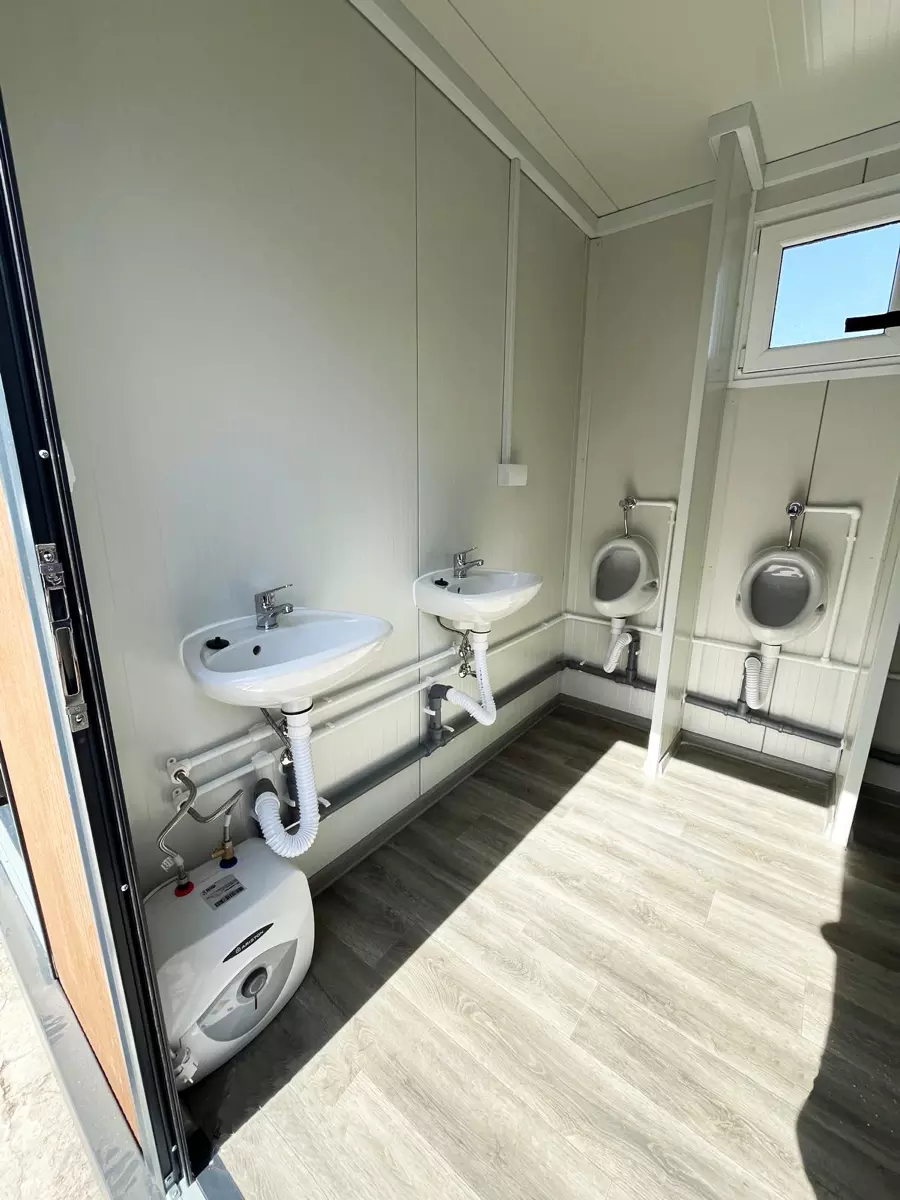

The W06 sanitary container is a higher-capacity solution for locations with increased visitor traffic, where a combination of multiple toilets and a washroom is required within a single module. The layout is designed for smooth operation: it includes 5× WC cabins, a separate urinal section, and a central washroom with washbasins. Thanks to the practical division of space (including a partition), it is suitable for construction sites, sports complexes, events, as well as company and municipal facilities.

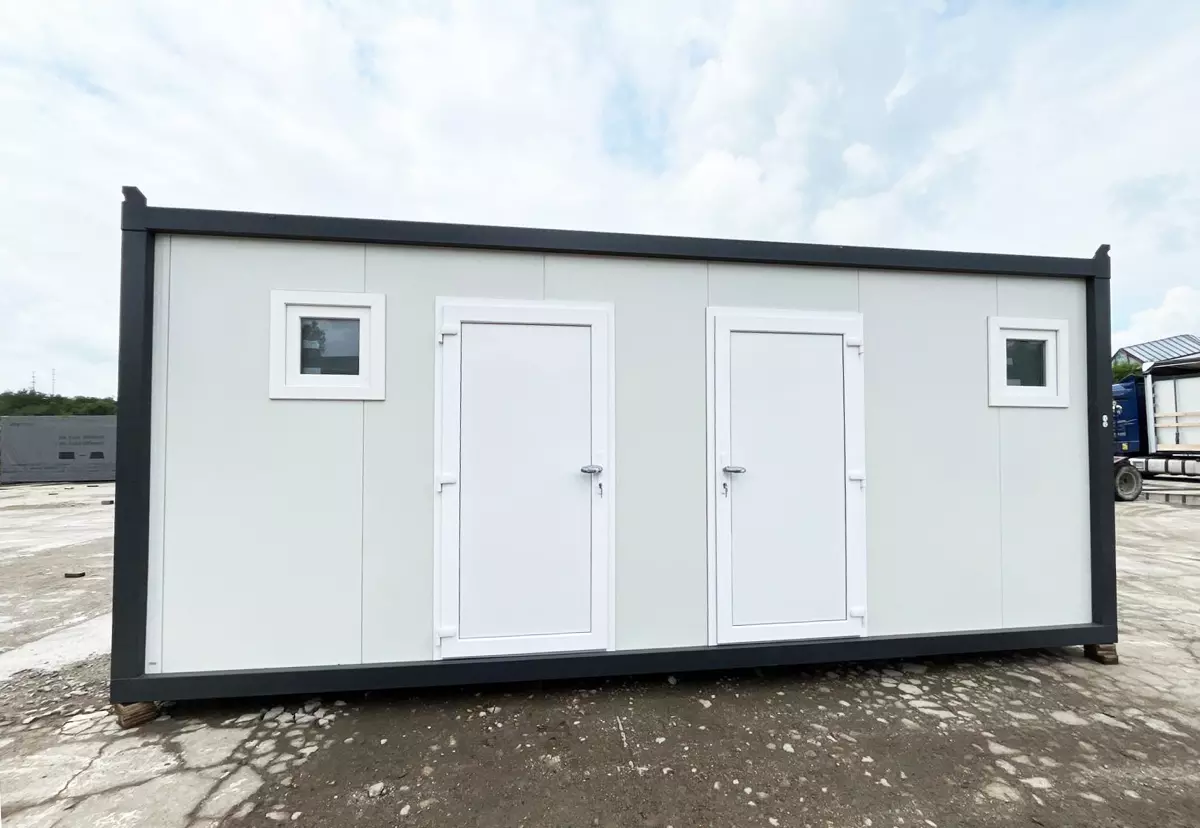

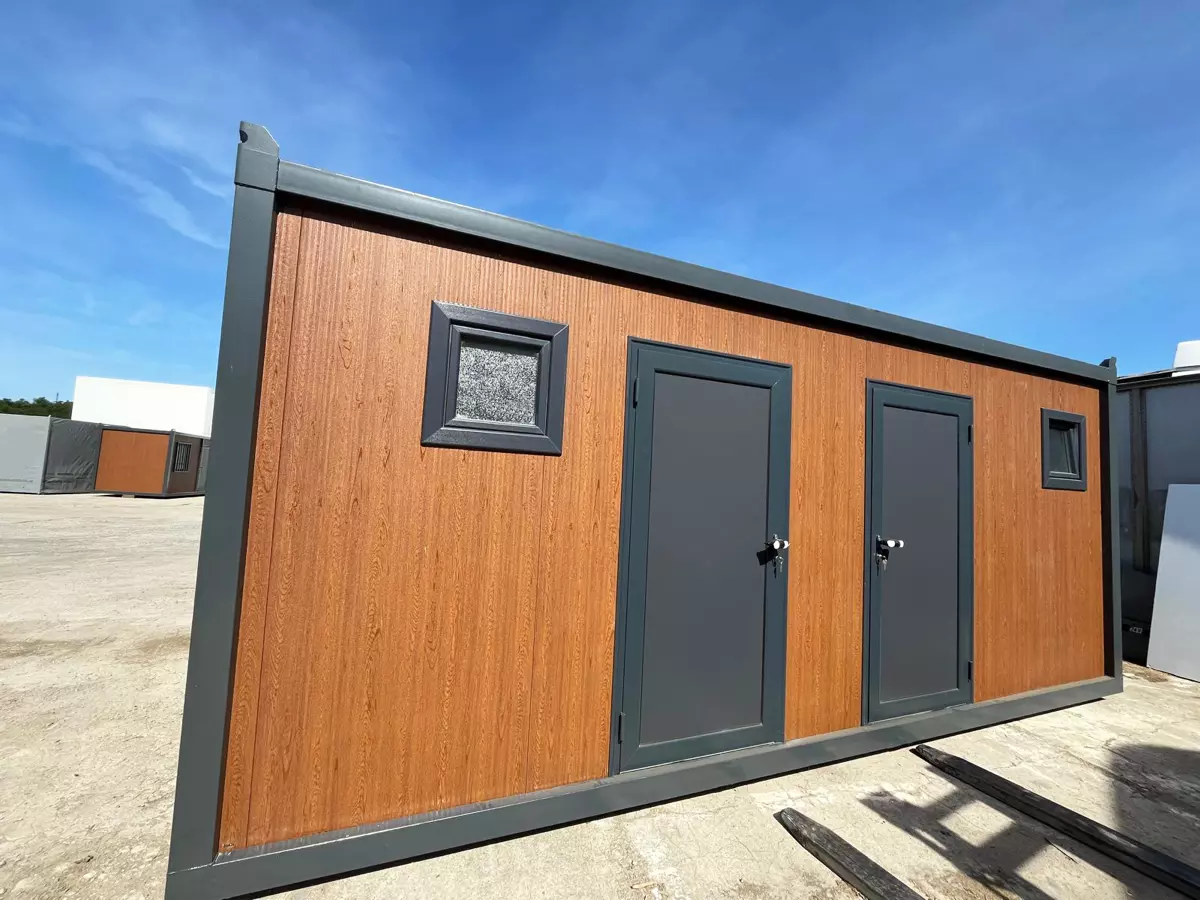

The container features two separate entrances, windows for natural daylight and ventilation, and a prepared location for the distribution board. We supply complete electrical installation as standard (sockets, lighting, switches, distribution board), and the water supply and drainage systems are adapted according to the client’s requirements and connection method.

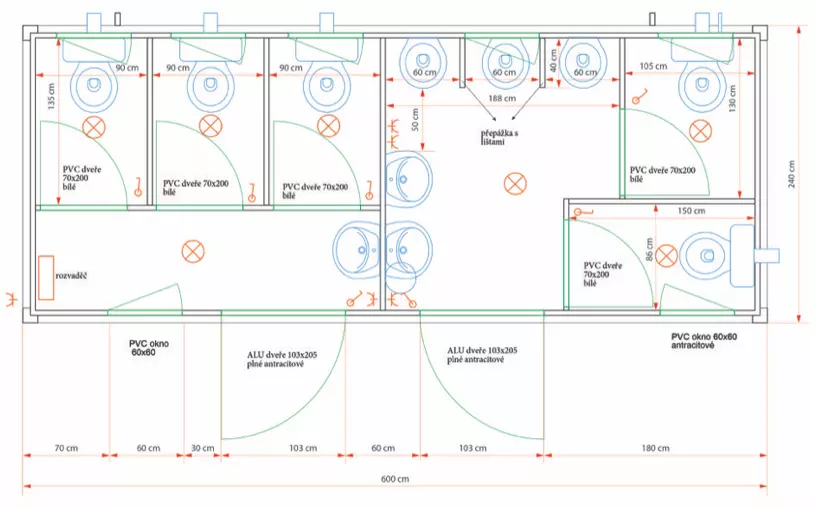

Floor plan
| Container Type | W06 | |||
| Dimensions | Length | 600 cm | Width | 240 cm |
| Height | 268 cm | Clear Height | 236 cm | |
| Weight | 1800 kg | |||
| Technical Parameters | Snow Load | 50kg/m2 | Wind Speed | 60 km/h |
| Floor Load Capacity | 200kg/m2 | |||
| Thermal Conductivity (U-value) | Wall | 0,35(W/m2K) | Roof | 0,35 (W/m2K) |
| Construction | Bottom and Top Frame | Profiles 120x60x2,5mm | ||
| Corner Posts | Formed profile 120x120x2mm | |||
| Ceiling | Roof Covering | Sandwich panels: 50mm PUR panel (0,5mm sheet, PUR, 0,5mm sheet) | ||
| Walls | External Walls | 50 mm sandwich PUR panel with surface finish | ||
| Floor | Frame | Profiles 80x40x1,8mm with spacing 41cm | ||
| Insulation | 50 mm sandwich PUR panel | |||
| Floor Board | 12 mm OSB board | |||
| Floor Covering | 3 mm linoleum | |||
| Doors | Exterior | Dimension | 90/70x200 cm | |
| Material | PVC | |||
| Windows and Glazing | Window | PVC, size 100x120 cm, opening and ventilation | ||
| Glazing | Double thermal glass 4 + 16 + 4mm | |||
| Color | Frames and Corners | RAL 7016, 3in1 coating | ||
| Walls | RAL 9002 | |||
| Electrical Installation | Connection |
Five-pin connection 400V/32A, PP/Y-5x2,5mm supply to switchboard, Main circuit breaker B16 3F |
||
| Sockets and Switches | CE-TSE certified - 230V - B16A breaker - RCD | |||
| Lighting | 7x ceiling LED light 24W/1700lm/6500k - B10A breaker - RCD | |||
| Sanitary Equipment | Water Supply | ø20 PPR piping | ||
| Water Drainage | Sink | ø50mm PVC | ||
| WC | ø110mm PVC | |||
| Ceramic Sink | Type | Wall-mounted (CE-TSE certified) | ||
| Faucet | Standing (CE-TSE certified) | |||
| WC | Material | Ceramic | ||
| Flush Tank | Ceramic tank, combo mechanism | |||
| Shower Faucet | standard stainless steel | |||
| Urinal | Ceramic | flush valve | ||
| Boiler | Electric boiler 10 liters, breaker 16A | |||
| Lifting System |
The container can be loaded and unloaded either using steel cables with hooks attached to corner eyes, or using forklift forks (recommended length 2.5m) |
|||
| Warranty Conditions |
BAUGRUP containers have a one-year warranty for all manufacturing and assembly defects. The warranty does not cover damage caused during transport. More details in the Terms and Conditions available at www.levnykontejner.cz. |
|||
| Maintenance |
To fully utilize its lifespan, it is necessary to follow the rules for its use and maintenance. More details in the Maintenance Manual available at www.levnykontejner.cz. |
|||
