CONTAINER W07
The W07 sanitary container is a larger and highly practical solution for facilities with higher visitor traffic, where showers and toilets need to be combined within one unit. The layout includes 4× shower cubicles (90 × 90 cm shower trays), 3× WCs (in separate cabins), 2× urinals (including a lower urinal for children), and a washroom with washbasins. This makes it suitable for campsites, sports complexes, construction sites, accommodation facilities, events, and seasonal operations.
It also includes a technical section prepared for a water heater and distribution board. We supply complete electrical installation as standard (sockets, lighting, switches, distribution board), and the water supply and drainage systems are adapted according to the client’s requirements and connection method. Windows (typically 60 × 60 cm) are installed for natural daylight and ventilation, supplied in PVC as standard, with other options available upon request.

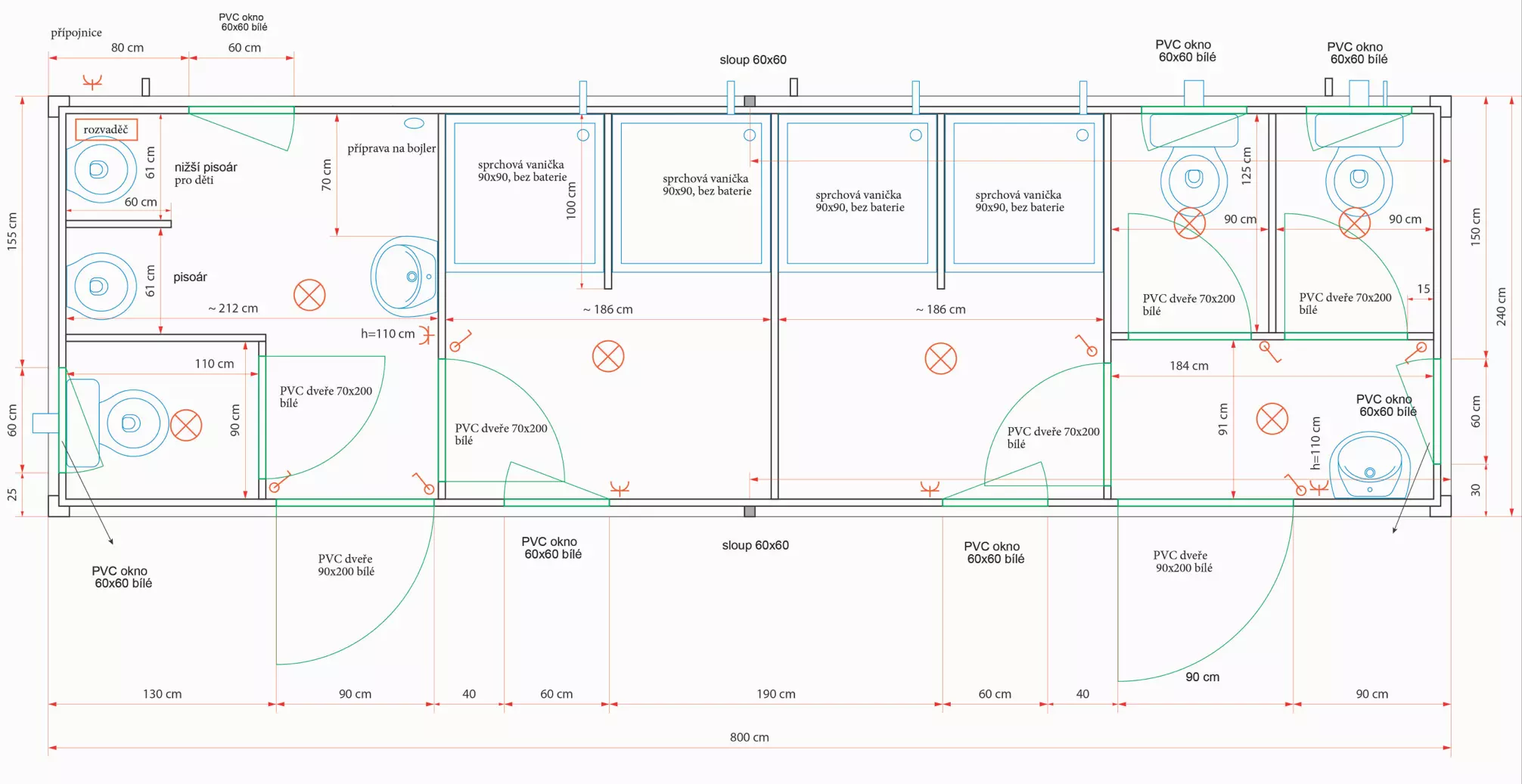

Floor plan
| Container Type | W07 | |||
| Dimensions | Length | 800 cm | Width | 240 cm |
| Height | 268 cm | Clear Height | 236 cm | |
| Weight | 2000 kg | |||
| Technical Parameters | Snow Load | 50kg/m2 | Wind Speed | 60 km/h |
| Floor Load Capacity | 200kg/m2 | |||
| Thermal Conductivity (U-value) | Wall | 0,35(W/m2K) | Roof | 0,35 (W/m2K) |
| Construction | Bottom and Top Frame | Profiles 120x60x2,5mm | ||
| Corner Posts | Formed profile 120x120x2mm | |||
| Ceiling | Roof Covering | Sandwich panels: 50mm PUR panel (0,5mm sheet, PUR, 0,5mm sheet) | ||
| Walls | External Walls | 50 mm sandwich PUR panel with surface finish | ||
| Floor | Frame | Profiles 80x40x1,8mm with spacing 41cm | ||
| Insulation | 50 mm sandwich PUR panel | |||
| Floor Board | 12 mm OSB board | |||
| Floor Covering | 3 mm linoleum | |||
| Doors | Exterior | Dimension | 90/70x200 cm | |
| Material | PVC | |||
| Windows and Glazing | Window | PVC, size 100x120 cm, opening and ventilation | ||
| Glazing | Double thermal glass 4 + 16 + 4mm | |||
| Color | Frames and Corners | RAL 7016, 3in1 coating | ||
| Walls | RAL 9002 | |||
| Electrical Installation | Connection |
Five-pin connection 400V/32A, PP/Y-5x2,5mm supply to switchboard, Main circuit breaker B16 3F |
||
| Sockets and Switches | CE-TSE certified - 230V - B16A breaker - RCD | |||
| Lighting | 7x ceiling LED light 24W/1700lm/6500k - B10A breaker - RCD | |||
| Sanitary Equipment | Water Supply | ø20 PPR piping | ||
| Water Drainage | Sink | ø50mm PVC | ||
| WC | ø110mm PVC | |||
| Ceramic Sink | Type | Wall-mounted (CE-TSE certified) | ||
| Faucet | Standing (CE-TSE certified) | |||
| WC | Material | Ceramic | ||
| Flush Tank | Ceramic tank, combo mechanism | |||
| Shower Faucet | standard stainless steel | |||
| Urinal | Ceramic | flush valve | ||
| Boiler | Water preparation only, breaker 16A | |||
| Lifting System |
The container can be loaded and unloaded either using steel cables with hooks attached to corner eyes, or using forklift forks (recommended length 2.5m) |
|||
| Warranty Conditions |
BAUGRUP containers have a one-year warranty for all manufacturing and assembly defects. The warranty does not cover damage caused during transport. More details in the Terms and Conditions available at www.levnykontejner.cz. |
|||
| Maintenance |
To fully utilize its lifespan, it is necessary to follow the rules for its use and maintenance. More details in the Maintenance Manual available at www.levnykontejner.cz. |
|||
