CONTAINER L01
CONTAINER L01
The oversized 7x3 m container is an ideal solution for projects where a larger open space without division is required. The 3 m width allows for comfortable placement of workplaces or customer zones.
It is often used as a larger office container, sales unit, gastro operation or administrative facilities.
Cladding: imitation wood, anthracite, or real wood cladding. The frame color can be customized according to company colors or logo
Optional extras:
- Doors and windows in various variants, reflective film
- Gastro serving windows
- Roller shutters, blinds, insect screens, security bars
- Air conditioning, electric heater
- Additional extras according to project requirements
Základní rozměr kontejneru L01:
300cm | 700cm | 21 m²
Floor plan
Variants

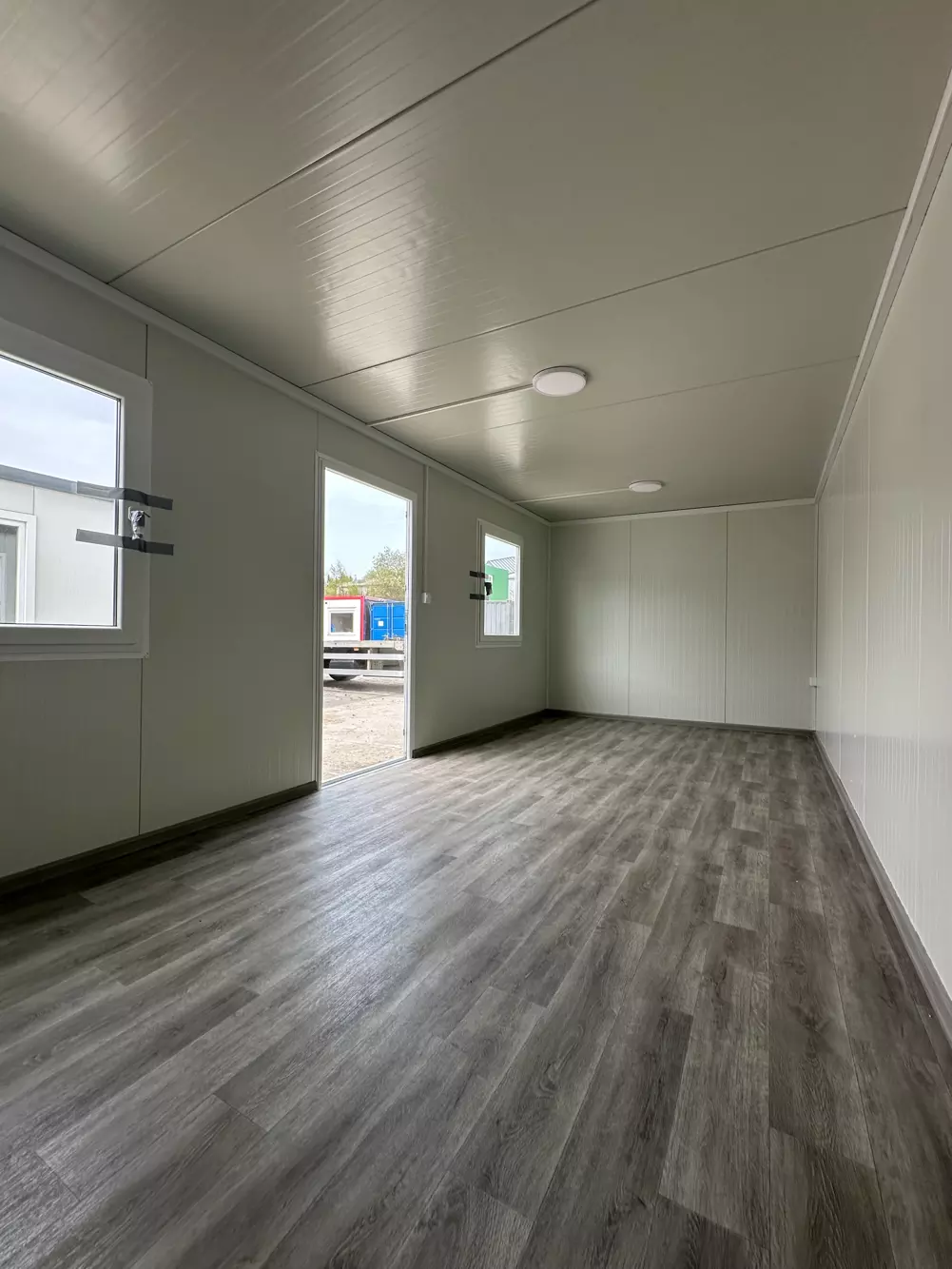

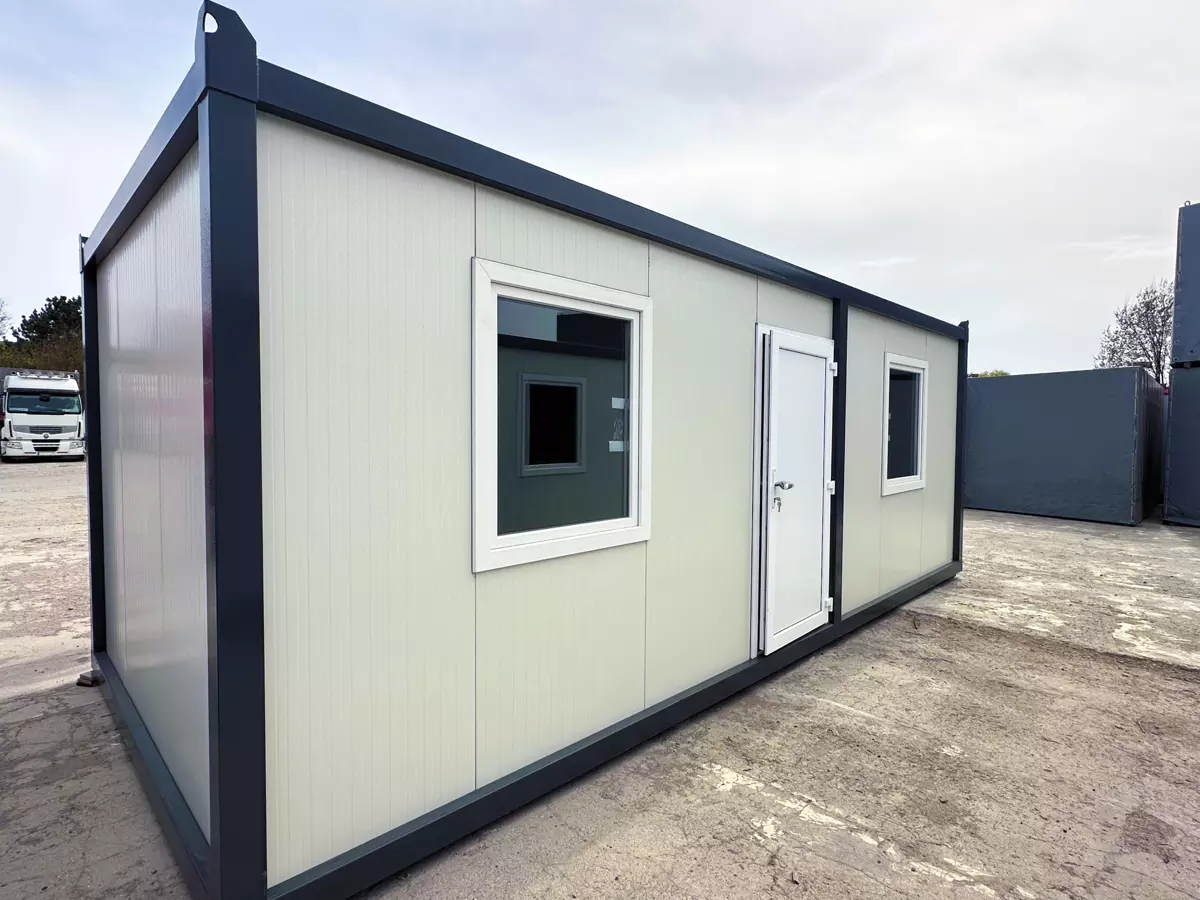

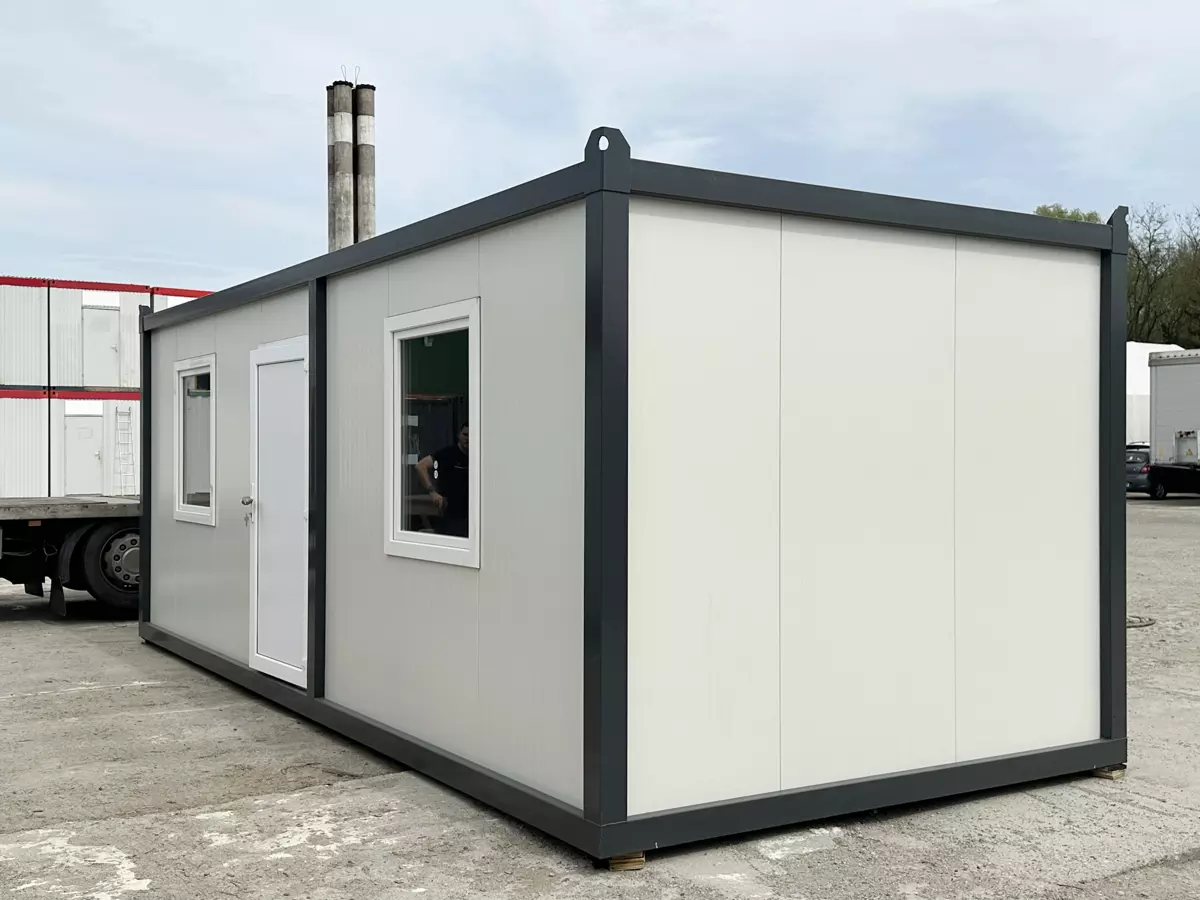

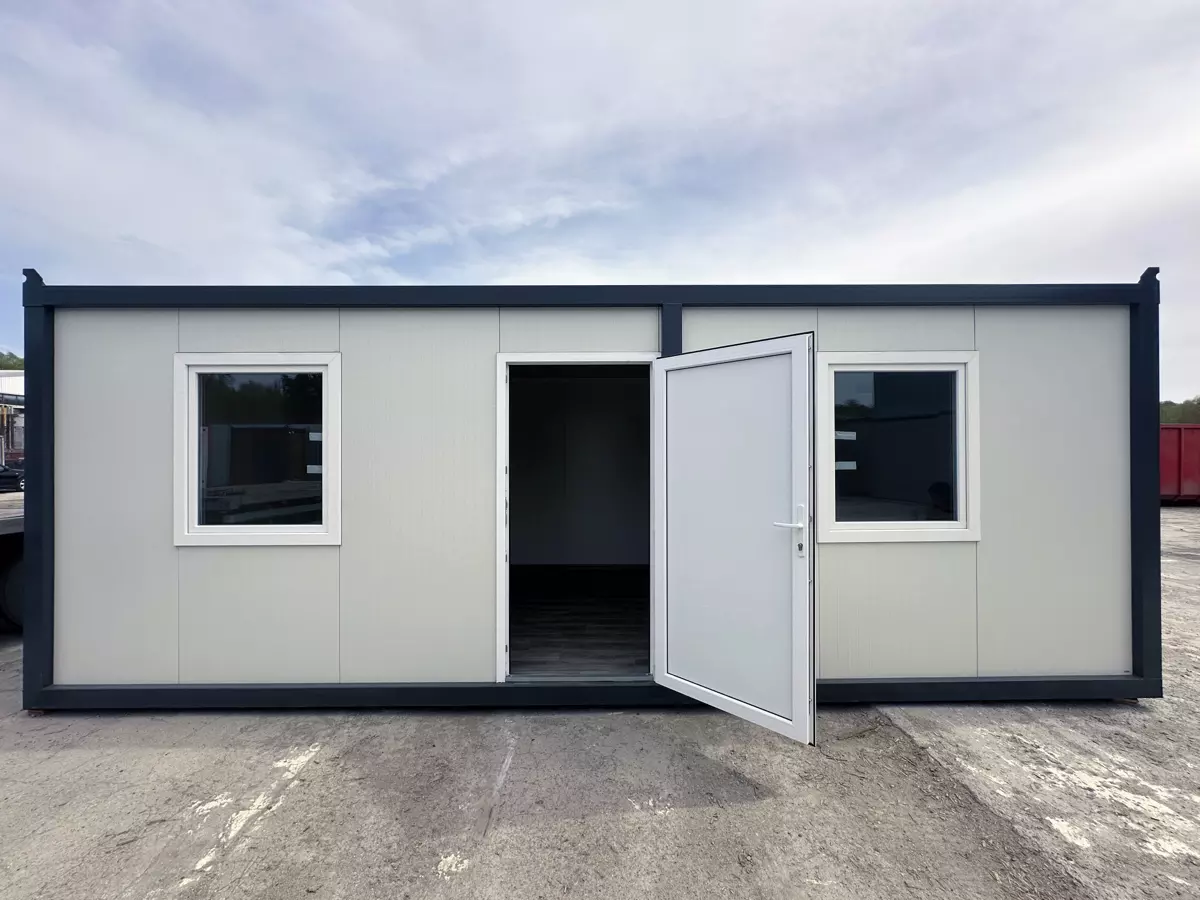

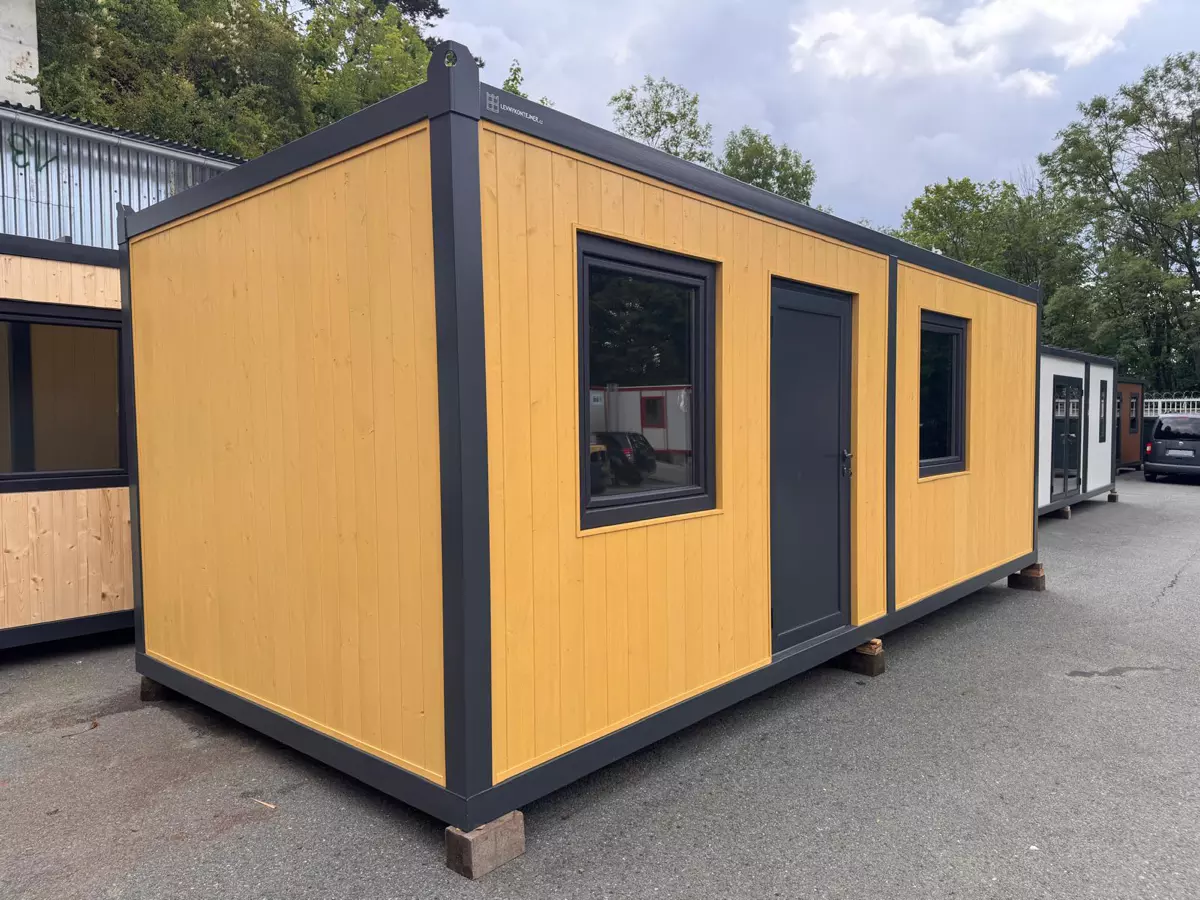

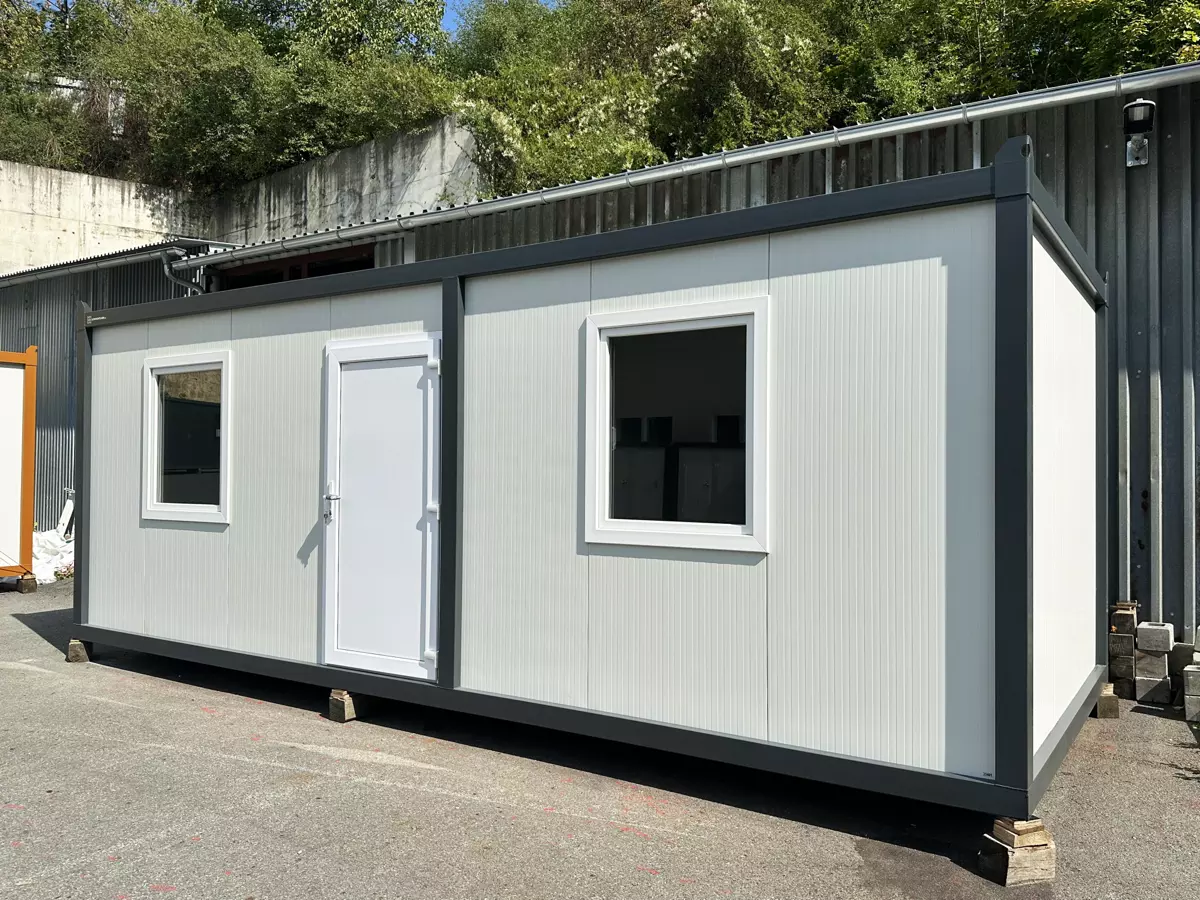

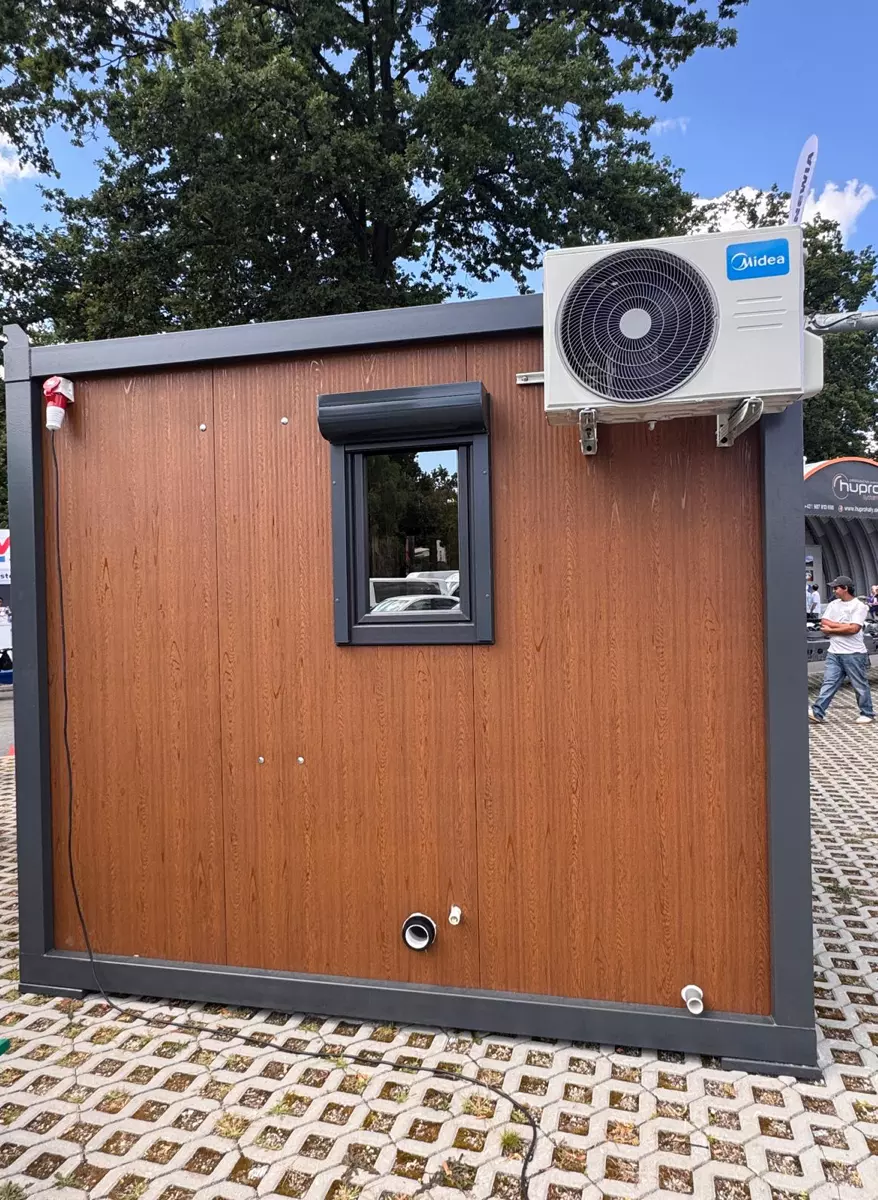

Gallery
Technical Specifications
| Container Type | L01 | |||
| Dimensions | Length | 700 cm | Width | 300 cm |
| Height | 268 cm | Clear Height | 236 cm | |
| Weight | 1600 kg | |||
| Technical Parameters | Snow Load | 50kg/m2 | Wind Speed | 60 km/h |
| Floor Load Capacity | 200kg/m2 | |||
| Thermal Conductivity (U-value) | Wall | 0,35(W/m2K) | Roof | 0,35 (W/m2K) |
| Construction | Bottom and Top Frame | Profiles 120x60x2,5mm | ||
| Corner Posts | TVL profile 120x120x2mm | |||
| Ceiling | Roof Covering | Sandwich panels: 80mm PUR panel (0,5mm sheet, PUR, 0,5mm sheet) | ||
| Walls | External Walls | 50 mm sandwich PUR panel with surface finish | ||
| Floor | Frame | Profiles 80x40x1,8mm with spacing 41cm | ||
| Insulation | 50 mm sandwich PUR panel | |||
| Floor Board | 12 mm OSB board | |||
| Floor Covering | 3 mm vinyl flooring | |||
| Doors | Exterior | Dimension | 90x200 cm | |
| Material | PVC | |||
| Windows and Glazing | Window | PVC, size 100x120 cm, opening and ventilation | ||
| Glazing | Double thermal glass 4 + 16 + 4mm | |||
| Color | Frames and Corners | RAL 7016, 3in1 coating | ||
| Walls | RAL 9002 | |||
| Electrical Installation | Connection |
Five-pin connection 400V/32A,PP/Y-5x2,5mm supply to switchboard, Main circuit breaker B16 3F |
||
| Sockets and Switches | CE-TSE certified - B16A breaker - RCD | |||
| Lighting | 2x ceiling LED light 24W/1700lm/6500k - B10A breaker - RCD | |||
| Lifting System | The container can be loaded and unloaded either using steel cables with hooks attached to corner eyes, or using forklift forks (recommended length 2.5m) | |||
| Warranty Conditions | BAUGRUP containers have a one-year warranty for all manufacturing and assembly defects. The warranty does not cover damage caused during transport. More details in the Terms and Conditions available at www.levnykontejner.cz. | |||
| Maintenance | To fully utilize its lifespan, it is necessary to follow the rules for its use and maintenance. More details in the Maintenance Manual available at www.levnykontejner.cz. | |||
