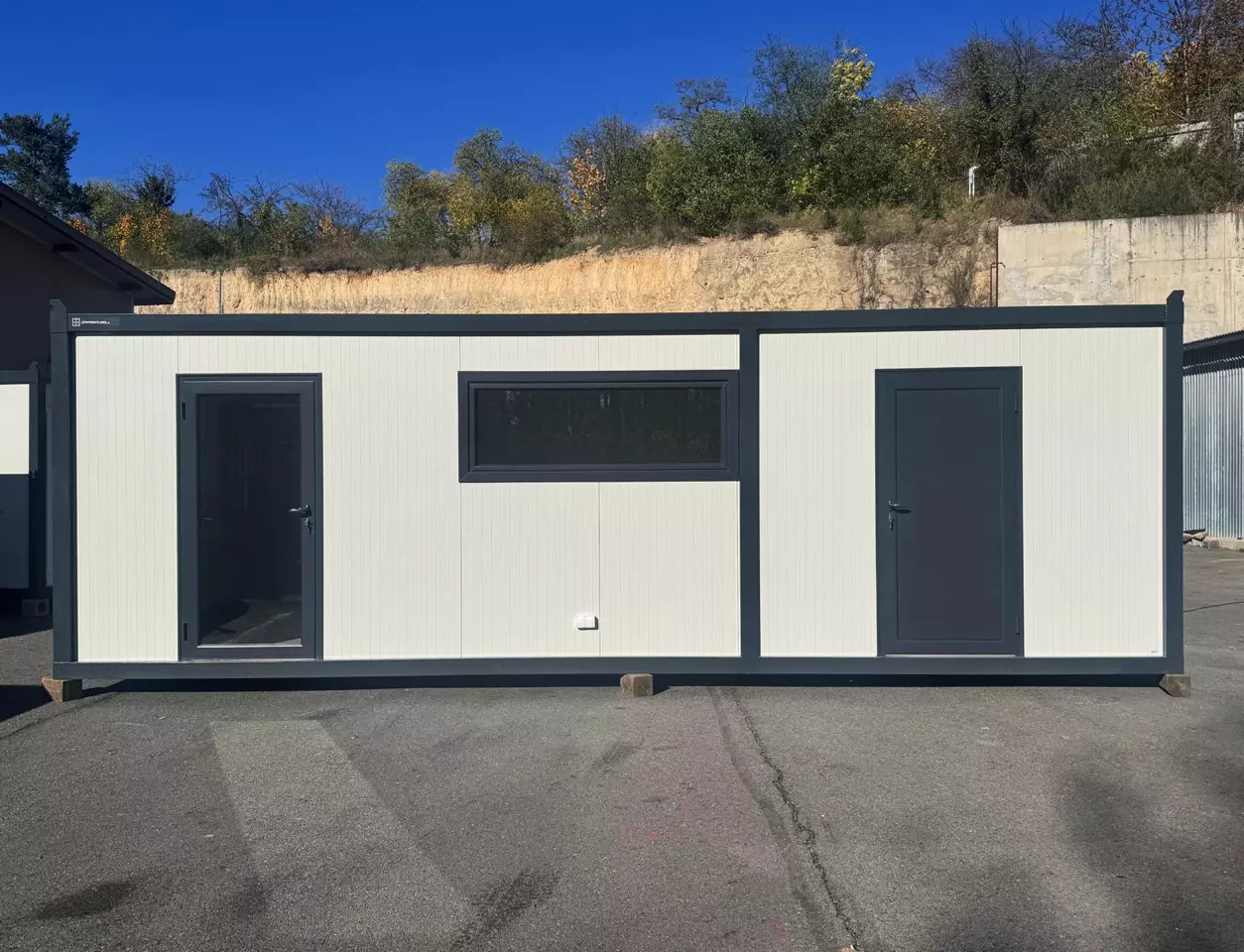

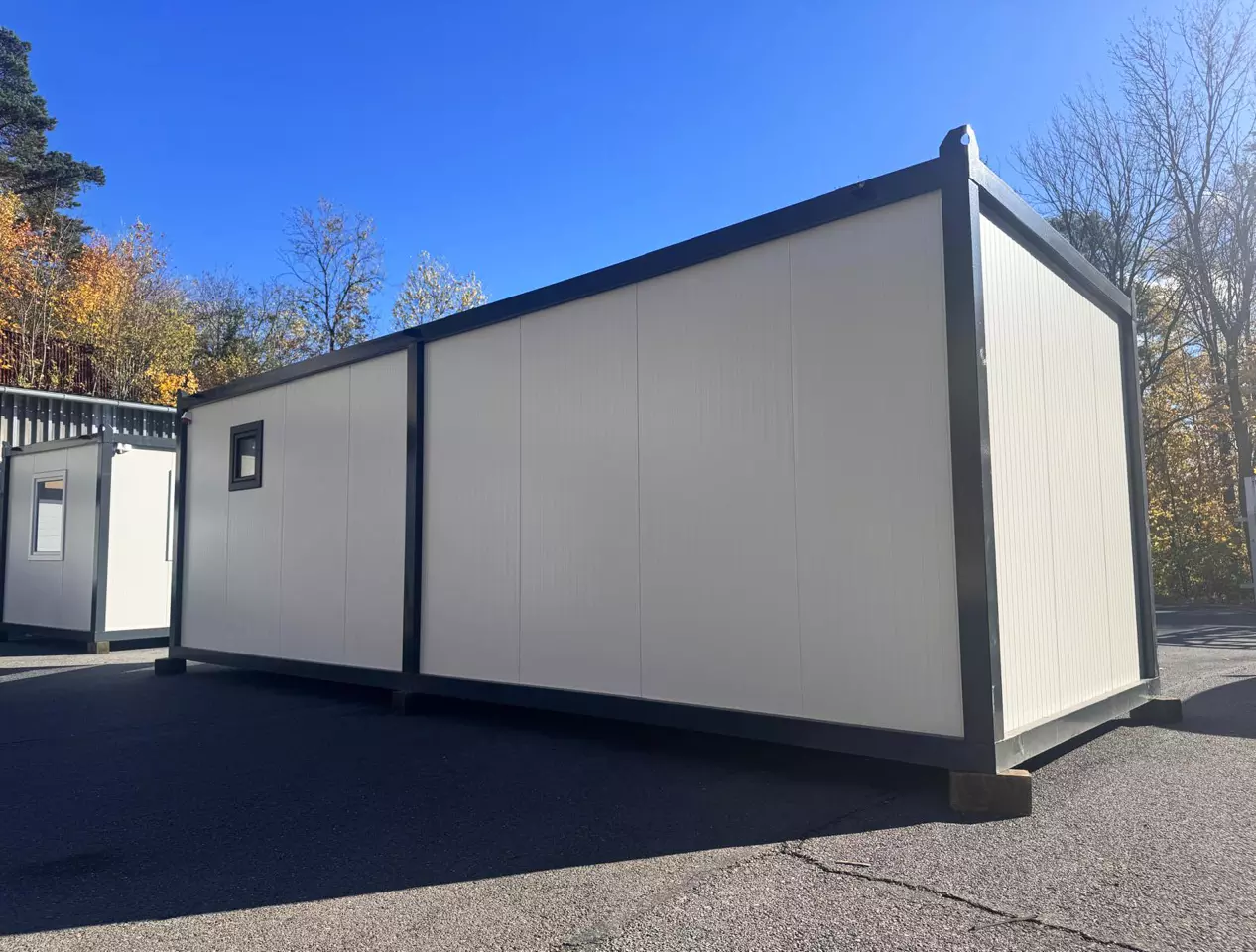

CONTAINER XL01
CONTAINER XL01
The oversized 8x3 m container offers generous interior space in one unit. With a length of 8 meters and a width of 3 meters, it is suitable as a classroom, meeting room, surgery, larger office or commercial unit.
Allows for variable placement of windows, doors and large-format glazing.
Cladding: imitation wood, anthracite, or real wood cladding. Frame color can be customized according to company colors or logo
Optional extras:
- Doors and windows in various variants, reflective film
- Gastro serving windows
- Roller shutters, blinds, insect screens, security bars
- Air conditioning, electric heater
- Additional extras according to project requirements
Základní rozměr kontejneru XL01:
300cm | 800cm | 24 m²
Floor plan
Variants
Gallery
Technical Specifications
| Container Type | XL01 | |||
| Dimensions | Length | 800 cm | Width | 300 cm |
| Height | 268 cm | Clear Height | 236 cm | |
| Weight | 1700 kg | |||
| Technical Parameters | Snow Load | 50kg/m2 | Wind Speed | 60 km/h |
| Floor Load Capacity | 200kg/m2 | |||
| Thermal Conductivity (U-value) | Wall | 0.35(W/m2K) | Roof | 0.35 (W/m2K) |
| Structure | Bottom and Top Frame | Profiles 120x60x2.5mm | ||
| Corner Columns | TVL profile 120x120x2mm | |||
| Ceiling | Roof Covering | Sandwich panels: 80mm PUR panel (0.5mm sheet, PUR, 0.5mm sheet) | ||
| Walls | External Walls | 50 mm sandwich PUR panel with surface finish | ||
| Floor | Frame | Profiles 80x40x1.8mm with spacing 41cm | ||
| Insulation | 50 mm sandwich PUR panel | |||
| Floor Board | 12 mm OSB board | |||
| Floor Covering | 3 mm vinyl flooring | |||
| Doors | Exterior | Dimensions | 90x200 cm | |
| Material | PVC | |||
| Windows and Glazing | Window | PVC, size 100x120 cm, opening and ventilation | ||
| Glazing | Double thermal glass 4 + 16 + 4mm | |||
| Color | Frames and Corners | RAL 7016, 3in1 coating | ||
| Walls | RAL 9002 | |||
| Electrical Installation | Connection |
Five-pin connector 400V/32A, PP/Y-5x2.5mm supply to distribution board, Main circuit breaker B16 3F |
||
| Sockets and Switches | CE-TSE certified - B16A circuit breaker - RCD | |||
| Lighting | 2x ceiling LED light 24W/1700lm/6500K - B10A circuit breaker - RCD | |||
| Lifting System | The container can be loaded and unloaded either using steel cables with hooks attached to corner eyes, or using forklift forks (recommended length 2.5 m) | |||
| Warranty Conditions | BAUGRUP containers have a one-year warranty for all manufacturing and assembly defects. The warranty does not cover damage caused during transport. More information can be found in the Terms and Conditions available for download at www.levnykontejner.cz. | |||
| Maintenance | To fully utilize its lifespan, it is necessary to follow the rules for its use and maintenance. More information can be found in the Maintenance Manual available for download at www.levnykontejner.cz. | |||
