CONTAINER K05
CONTAINER K05
Basic container module with sanitary equipment,
equipped with complete electrical installation (sockets, lights, switches, distribution board).
All utility connections are customized according to the client’s requirements.
PVC windows and doors are fitted as standard; aluminum versions are available at an additional cost.
Custom dimensions: length 1–9 m, width 1–3 m
Various cladding options available – wood imitation, anthracite, or real wood cladding. The frame color can be adapted to match corporate colors or logo.
Optional extras:
- Doors and windows in various variants, reflective film
- Gastro serving windows

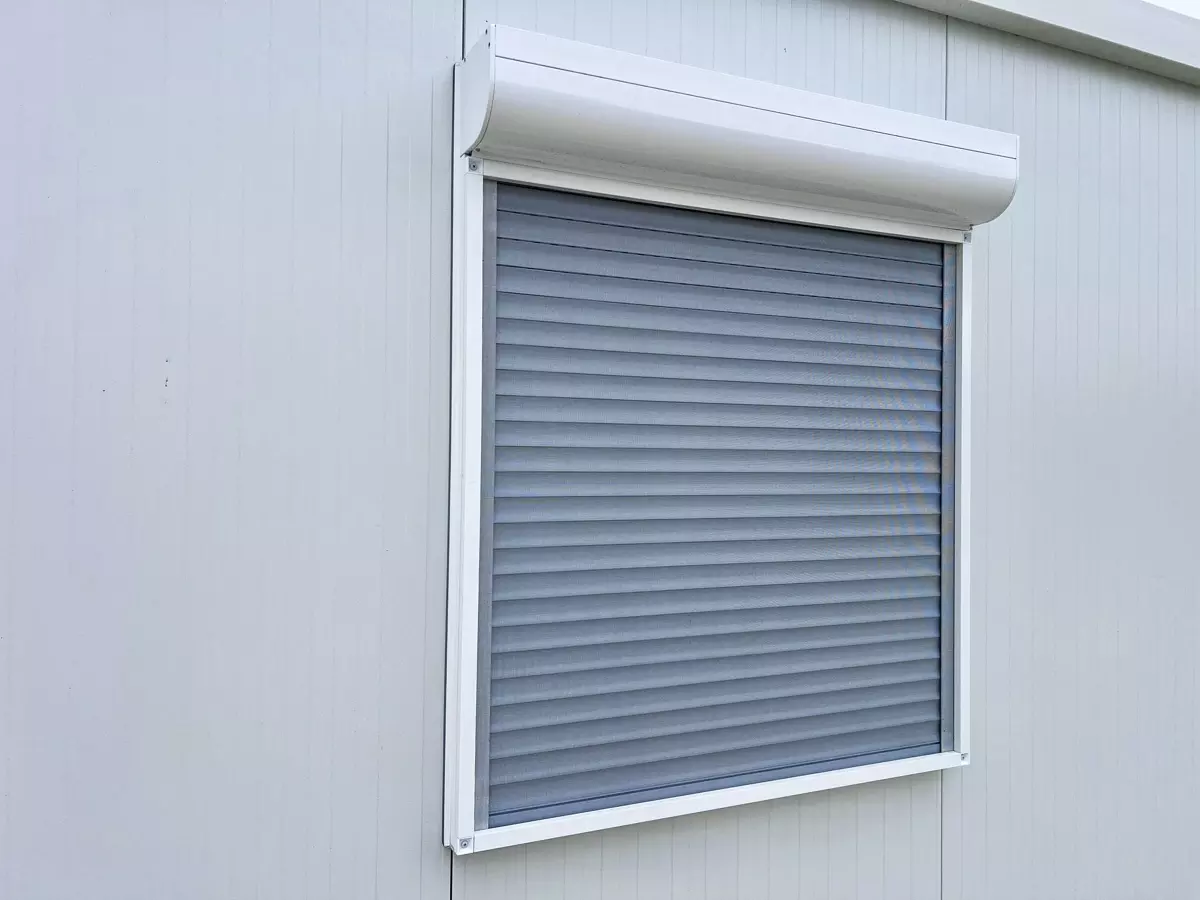

- Roller shutters, blinds, insect screens, security bars
- Air conditioning, electric heater
- Additional extras according to project requirements
Základní rozměr kontejneru K05:
240cm | 600cm | 14,4 m²

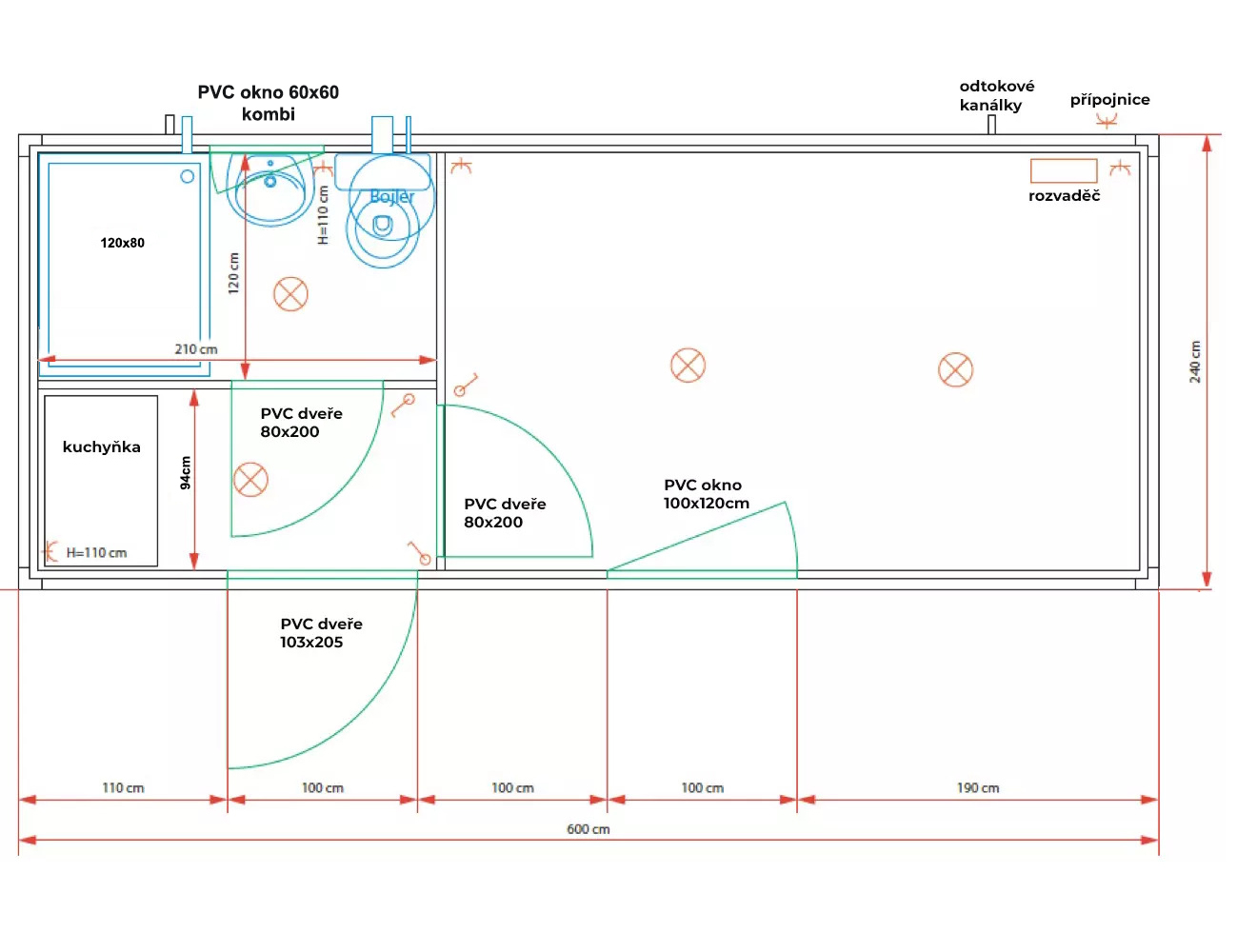

Floor plan
Variants

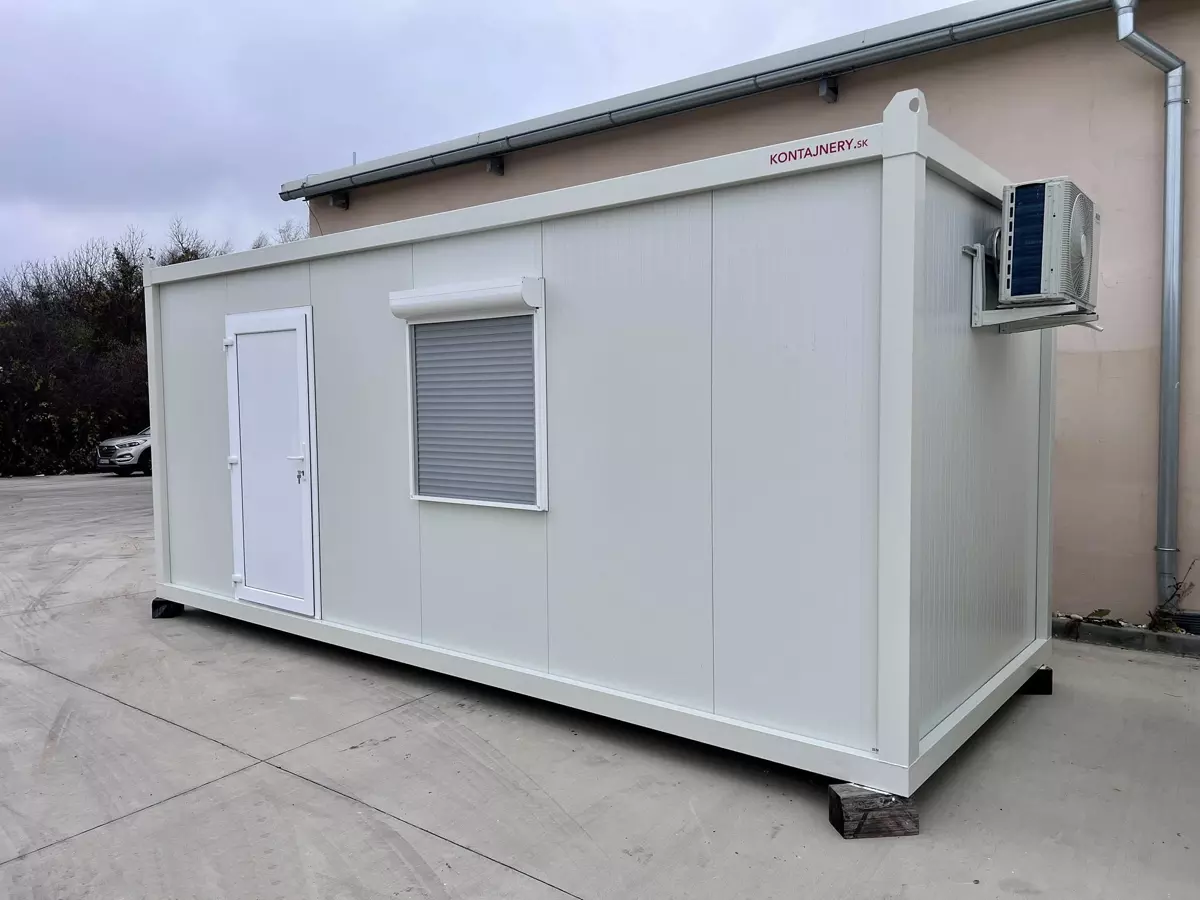

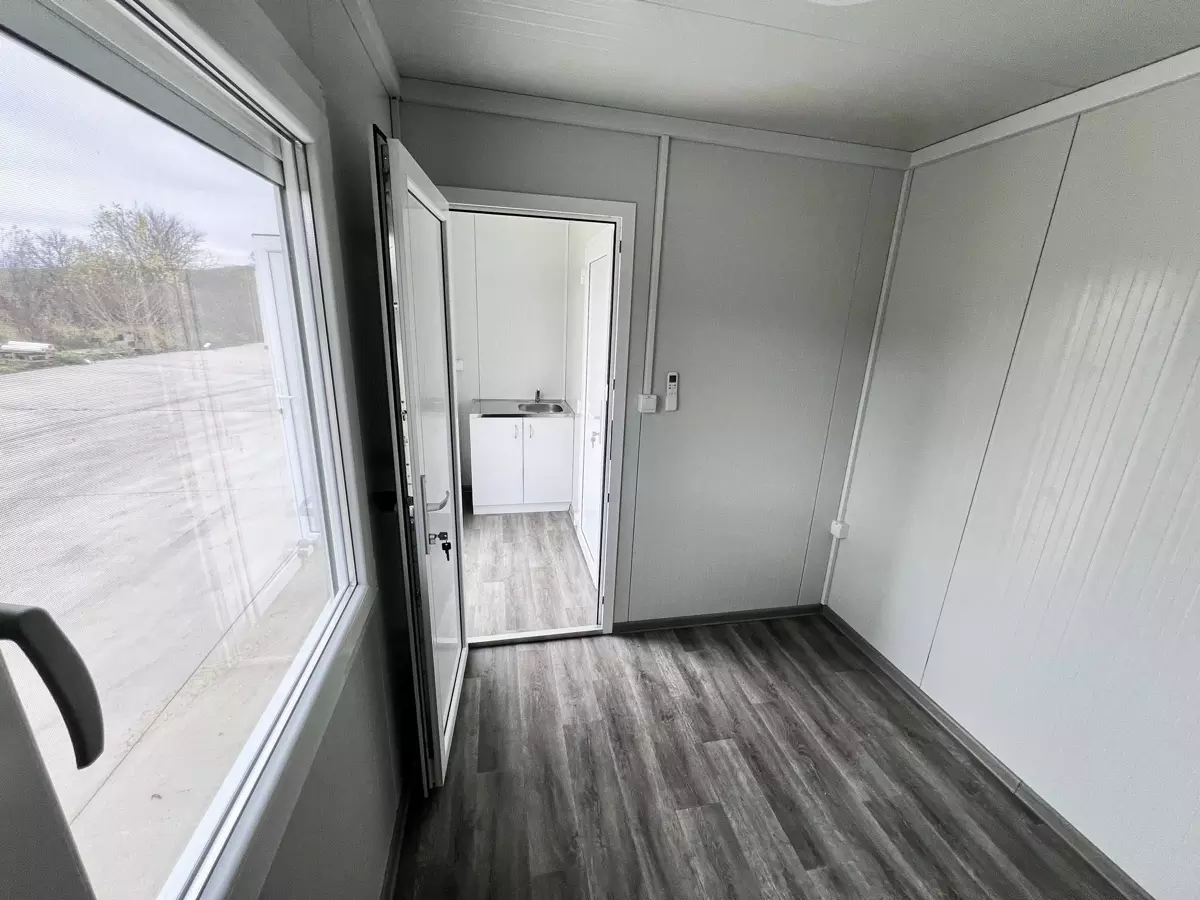

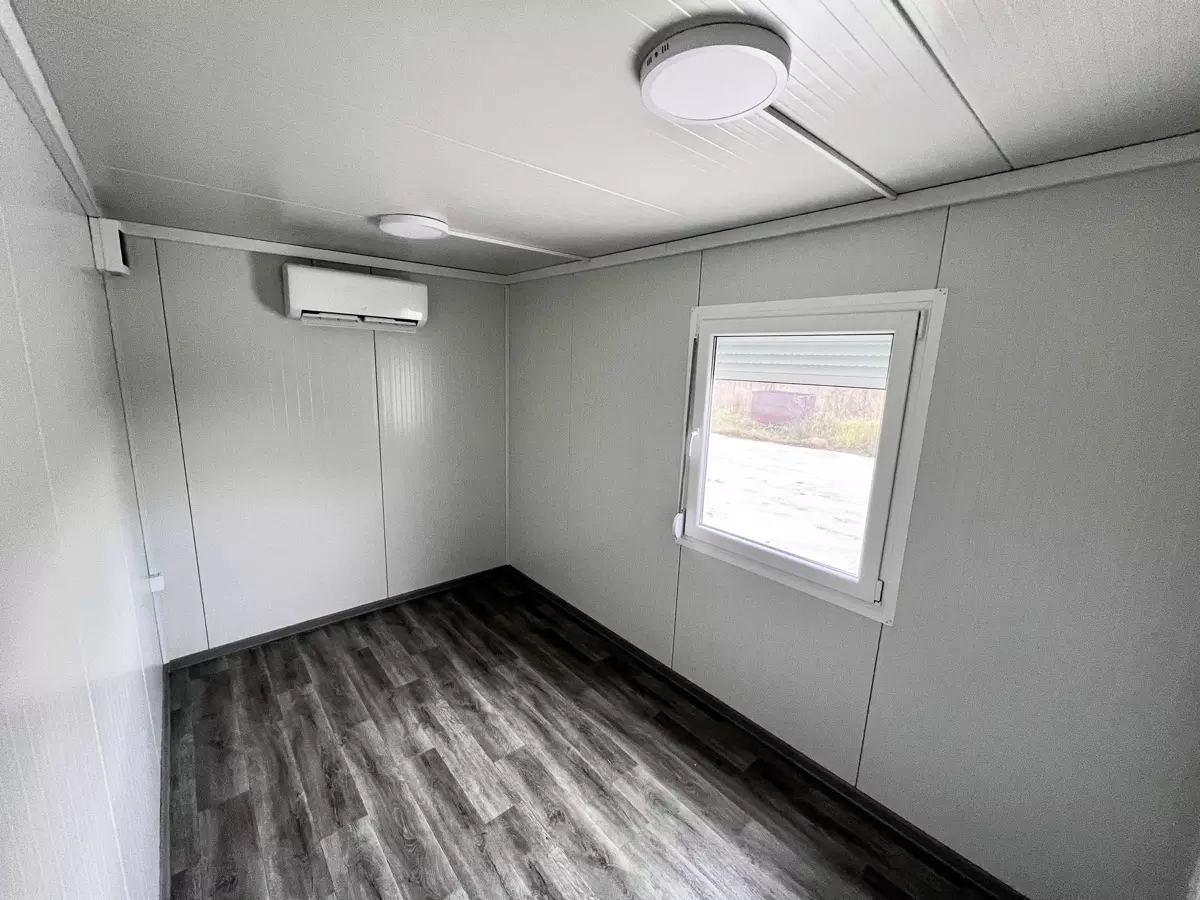

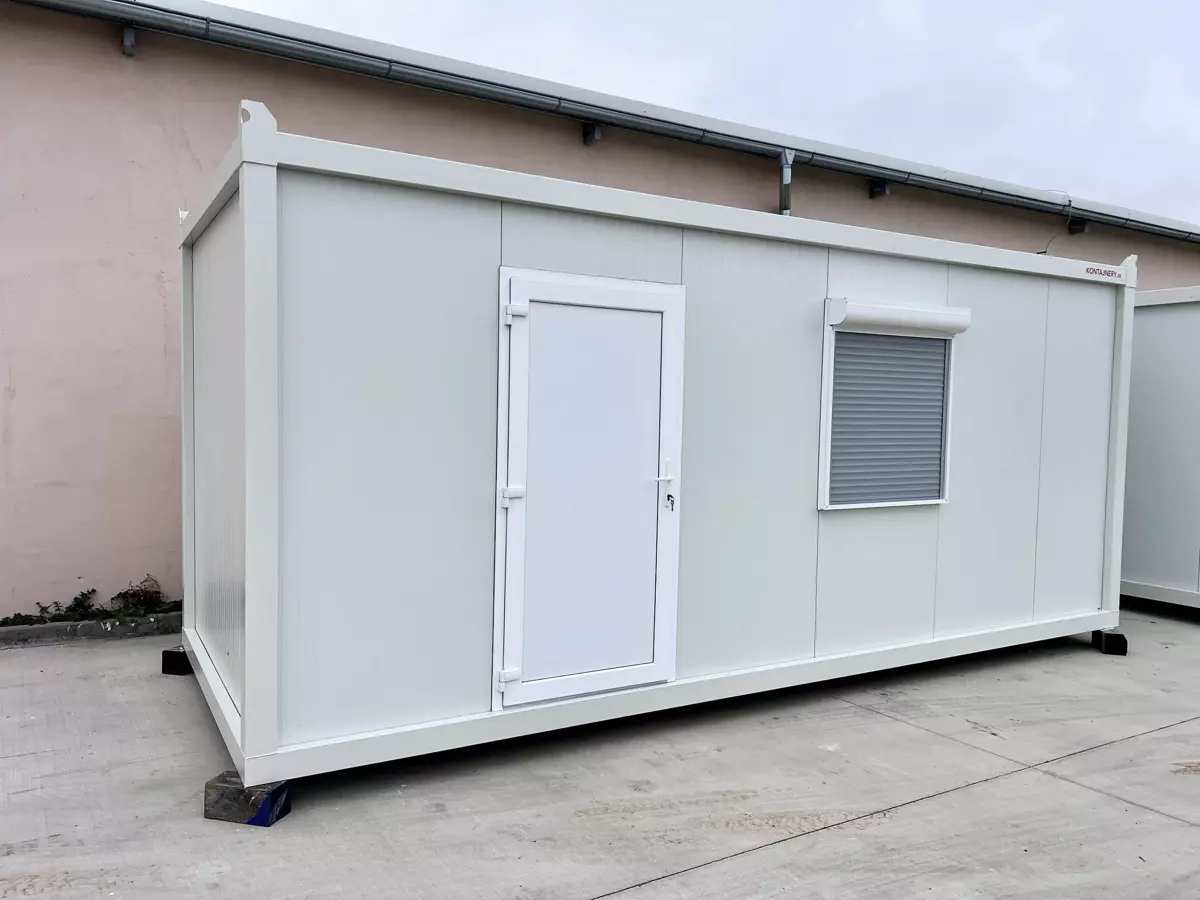

Gallery
Technical Specifications
| Container Type | K05 | |||
| Dimensions | Length | 600cm | Width | 240 cm |
| Height | 268 cm | Clear Height | 236 cm | |
| Weight | 1500 kg | |||
| Technical Parameters | Snow Load | 50kg/m2 | Wind Speed | 60 km/h |
| Floor Load Capacity | 200kg/m2 | |||
| Thermal Conductivity (U-value) | Wall | 0,35(W/m2K) | Roof | 0,35 (W/m2K) |
| Construction | Bottom and Top Frame | Profiles 120x60x2,5mm | ||
| Corner Posts | Formed profile 120x120x2mm | |||
| Ceiling | Roof Covering | Sandwich panels: 50mm PUR panel (0,5mm sheet, PUR, 0,5mm sheet) | ||
| Walls | External Walls | 50 mm sandwich PUR panel with surface finish | ||
| Floor | Frame | Profiles 80x40x1,8mm with spacing 41cm | ||
| Insulation | 50 mm sandwich PUR panel | |||
| Floor Board | 12 mm OSB board | |||
| Floor Covering | 3 mm linoleum | |||
| Doors | Exterior | Dimension | 90x200 cm | |
| Material | PVC | |||
| Windows and Glazing | Window | PVC, size 100x120 cm, opening with ventilation | ||
| Glazing | Double thermal glass 4 + 16 + 4mm | |||
| Color | Frames and Corners | RAL 7016, 3-in-1 coating | ||
| Walls | RAL 9002 | |||
| Electrical Installation | Connection |
Five-pin connector 400V/32A, PP/Y-5x2,5mm supply to distribution board, Main circuit breaker B16 3F |
||
| Sockets and Switches | CE-TSE certified - 230V - B16A circuit breaker - RCD | |||
| Lighting | 2x ceiling LED light 24W/1700lm/6500k - B10A circuit breaker - RCD | |||

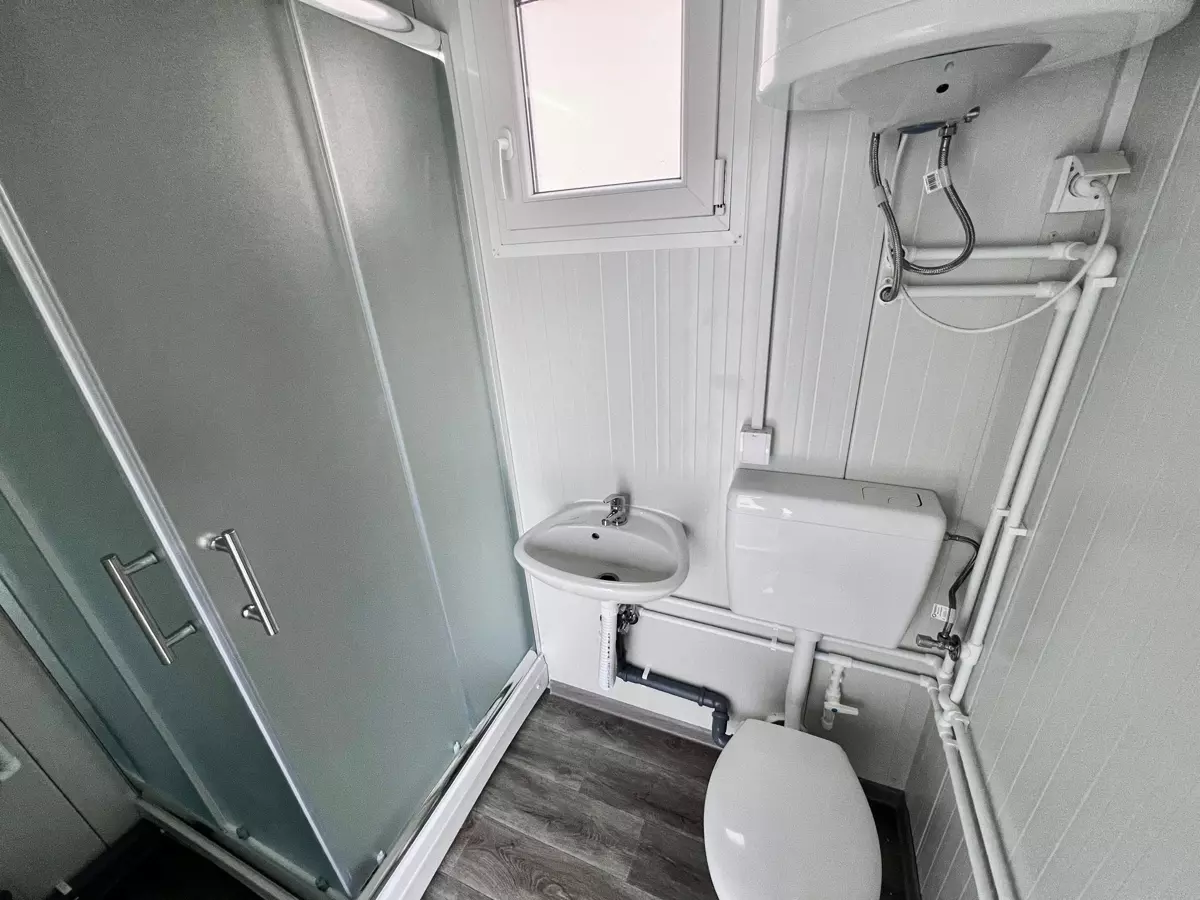

| Sanitary Equipment | Water Supply | ø20 PPR piping | ||
| Drainage | Sink | ø50mm PVC | ||
| WC | ø110mm PVC | |||
| Washbasin ceramic |
Type | wall-mounted (CE-TSE certified) | ||
| Faucet | standing (CE-TSE certified) | |||
| WC | Material | Ceramic | ||
| Flush System | Ceramic tank, combi mechanism | |||
| Shower Faucet | standard stainless steel | |||
| Shower Cabin | Shower tray 120x80/90x90 acrylic | |||
| Shower faucet - stainless steel | ||||
| Boiler | Electric boiler 50 liters, circuit breaker 16A | |||

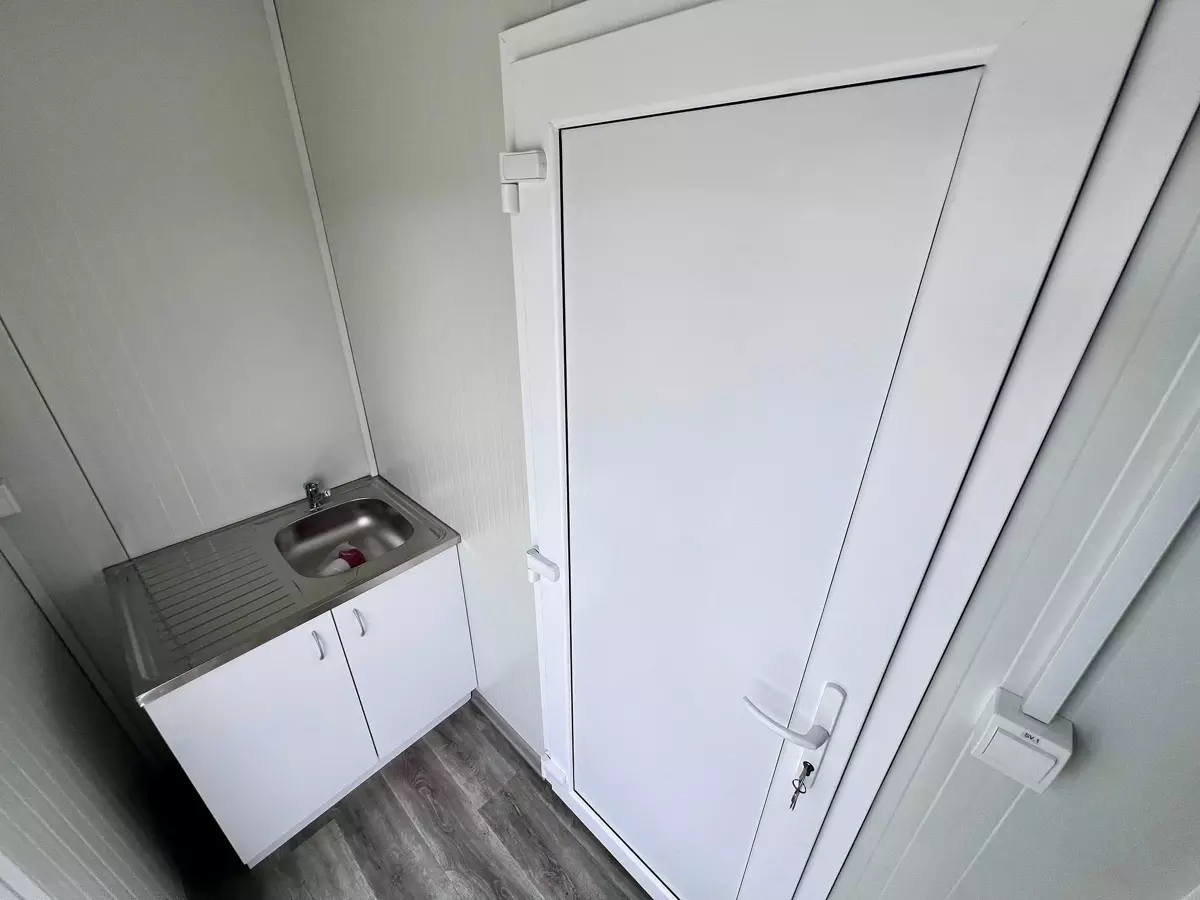

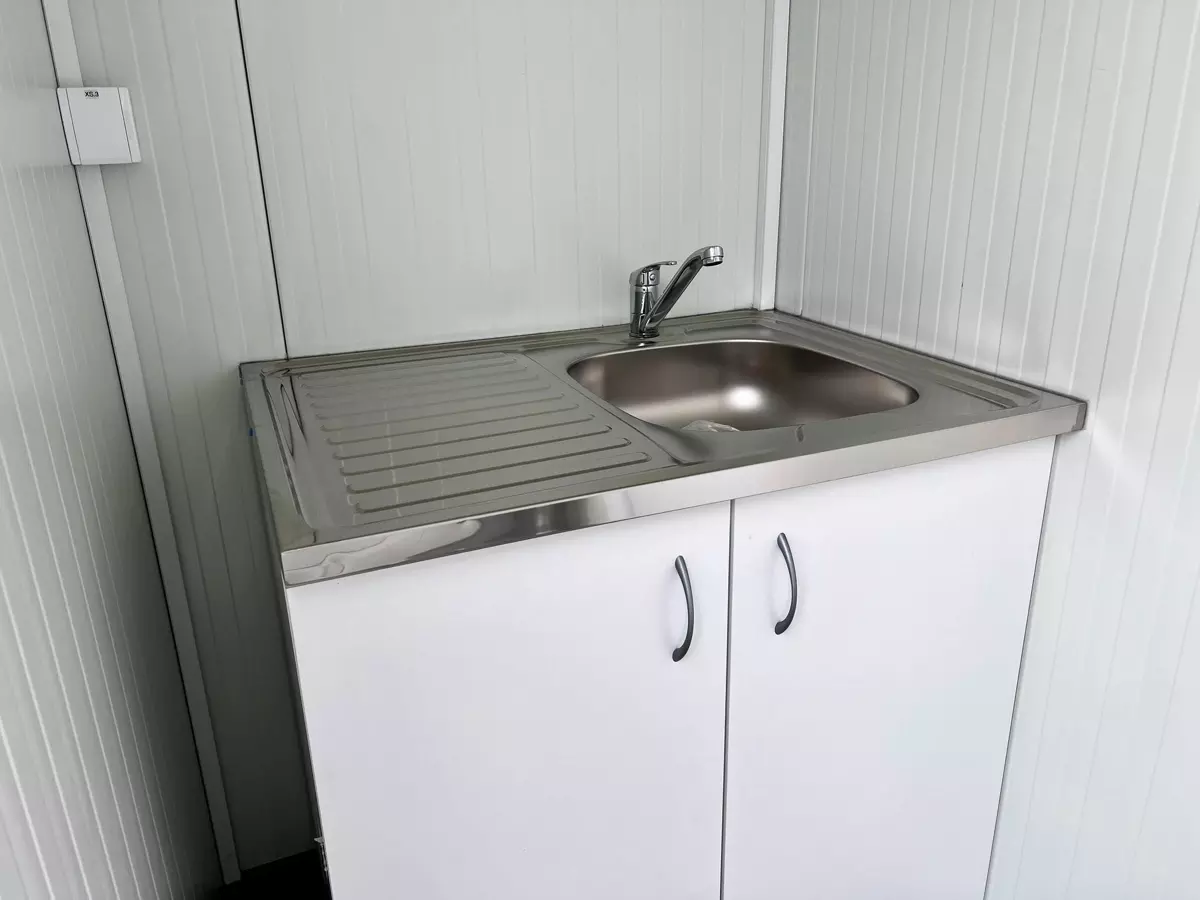

| Kitchenette with sink | 60x80 cm laminated chipboard and stainless steel sink with drainer | |||
| Faucet | standing (CE-TSE certified) | |||
| Lifting System | The container can be loaded and unloaded either using steel cables with hooks attached to corner fittings, or using forklift forks (recommended length 2.5m) | |||
| Warranty Conditions | BAUGRUP containers come with a one-year warranty covering all manufacturing and assembly defects. The warranty does not cover damage caused during transport. More details can be found in the Terms and Conditions available for download at www.levnykontejner.cz. | |||
| Maintenance |
To fully utilize its lifespan, it is necessary to follow the rules for use and maintenance. More details can be found in the Maintenance Manual available for download at www.levnykontejner.cz. |
|||
